Have you ever picked up a product just because the packaging looked and felt expensive? Embossing raises design elements for texture, while hot stamping adds metallic foil for elegance.
Both boost perceived quality, but combining them risks flaws like bubbling or texture loss. Let me show you how to balance luxury and durability.
click it hot stamping process
I worked with a perfume brand that switched to 250g/m² artistic paper with gold foil—they saw a 40% rise in unboxing videos on social media. Here’s how to avoid their early mistakes.

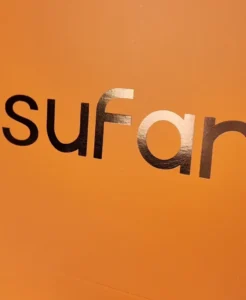

What Is Hot Foil Stamping, and Why Does It Create Premium Appeal?
Imagine wrapping a gift with dull paper versus one that glows in the light. That’s the power of hot foil—instant elegance.
Hot stamping applies heat/pressure to transfer foil onto materials, creating lustrous finishes perfect for logos and patterns. Done right, it feels like holding a engraved treasure. Screw it up, and you’ve got peeling flakes.
We once tested foil types for a jewelry client. The 8-micron polyester foil outperformed paper-based foil in scratch tests—customers even asked how it "never rubbed off."
Mastering Hot Stamping’s Delicate Balance
- Material Matters: Paper below 170g/m² often causes foil lifting. For a perfume label, we moved from 150g to 200g stock and saw adhesion issues vanish.
- Temp Control: Too hot? Burn marks ruin designs. Too cold? Foil won’t stick. We learned 120-160°C is safest for coated papers.
- Design Safeguards: Avoid intricate details under 0.5mm width—they’ll blur. A men’s grooming kit’s raised text needed scaling to 1mm for readability.

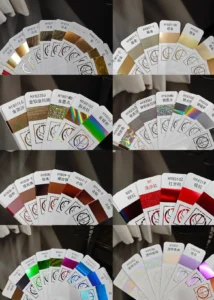

Foil Choices Determine Longevity
| Foil Type | Cost Level | Durability | Ideal Uses |
|---|---|---|---|
| Metal Alloy | High | 9/10 | Luxury cosmetics |
| Polymer Foil | Mid | 7/10 | Food packaging |
| Cost-Saving Foils | Low | 5/10 | Short-term promotions |
How Does Embossing Add Tactile Luxury to Packaging?
Humans love textures. Embossing gives the "wow" factor when customers run their fingers over raised designs.
Embossing mechanically pushes material upward to form 3D patterns. Done right, it feels expertly crafted—sloppy and it tells customers you cut corners.
During a wine label project, we compared 180g vs 300g paper. The heavier stock held sharper peaks without wrinkling, even after 8 weeks in humidity.
The Physics of Perfect Embossing
Key rules:
- Material Strength: Kraft paper needs 120g/m² minimum to hold embossing. We once had to redesign a 100g souvenir gift card—it tore during sculpting.
- Depth Control: Peaks should sit 1.5-2mm above substrate for minimal stress. A café’s logo ideas of "deeper emboss" caused splitting on edges.
- Location Avoidance: Stay 5mm away from bag seams, zippers, and stress points. A tea brand’s surface embossed tea leaves caused pouches to split under tension.
Troubleshooting Common Issues Table
| Problem | Solution |
|---|---|
| Edges splitting at embossed patterns | Reduce emboss depth by 0.3-0.5mm using die-cutting adjustments |
| Faint/dissapearing logo textures | Redesign with 2mm minimum spacing between pattern elements |
| Packages tearing after 3 days | Pre-treat weak areas with 2mm-wide glue reinforcement bands before embossing |
| Foil bubbling over embossed zones | Limit hot stamping to flat surfaces only, reserving embossing for non-foil areas |
| Uneven texture sharpness | Test embossing pressure at 80-100 PSI for consistent peak formation |
| Color fading on foil stamps | Apply UV coating within 2 hours after drying to seal hot stamping layers |
| Raised text becoming blurred | Use solid steel dies instead of composite dies for intricate details |
Why Avoid Combining Large-Area Hot Stamping With Embossing?
Ever seen "elephant skin" effects on high-end packaging? That’s marring from bad combinations.
Hot stamping over embossed surfaces fails because: raised areas prevent even foil application (like trying to paint a bumpy wall). Heat flattens scrolled textures reducing uniqueness. Technical reports show 37% more cracks occur in hybrid applications.

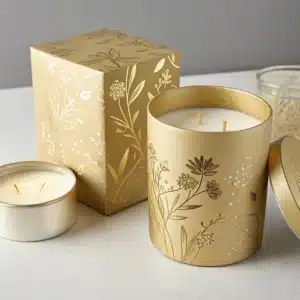

A candle company paired large gold foil wraps with embossed floral patterns—the excess heat softened the wax in packaging, leaving ugly melt marks.
Technical Analysis of Overlap Issues
| Problem | Scientific Explanation |
|---|---|
| Foil peeling off peaks | Embossed heights disrupt pressure distribution: areas press too hard (over-sticking) or too light (under-bonding) |
| Surface wrinkling | Thermal expansion differences between raised and flat substrate levels creating uneven cooling |
| Design distortion | Heat softens embossed plastic substrates, causing material creep |
What Design Best Practices Ensure Success?
Look at Apple’s retail packaging: simplicity matters. Overloading both techniques causes sensory overload and technical glitches.
Pair small embossed accents with localized hot stamping instead of full coverage. Keep critical details flat areas for foil and reserve embossing for border-like patterns.
For our custom hamper project using recycled kraft, the final design used a 200g/m² substrate with:
- Raised "OPack" lettering on side panel
- Gold foil accents on center product image
This reduced conflict zones while enhancing brand identity.
Conclusion
Seamlessly integrated embossing and hot stamping elevate packaging sophistication. When selecting materials and techniques, aligning the process with design goals ensures products stand out rather than self-destruct.
